Safety Area Protection
In modern industrial production, the traditional passive defense mode of protective barriers and emergency stop buttons has revealed fatal flaws such as delayed response and blind spots in protection, making it difficult to cope with dynamically changing human-machine interaction scenarios.

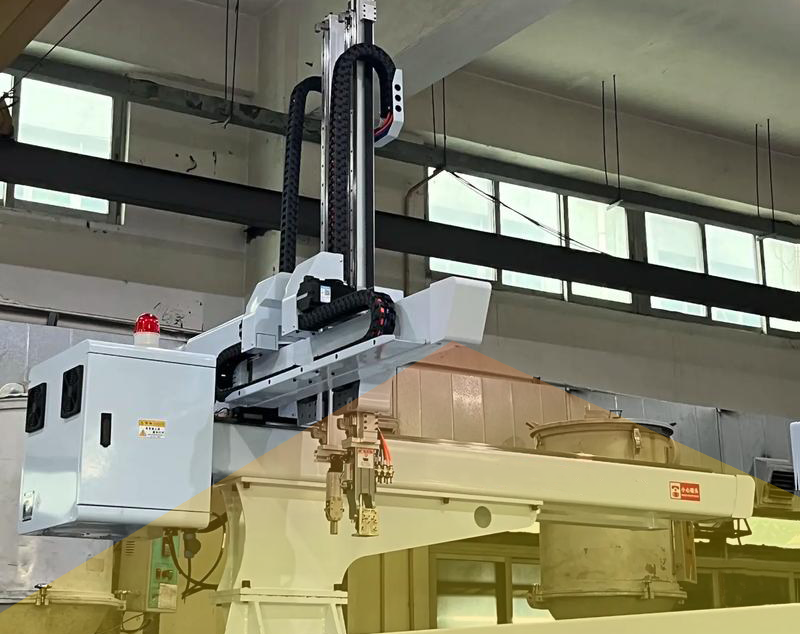

To address this safety dilemma, LuminWave has introduced a 3D spatial safety protection solution centered around the D-series ToF cameras. This solution incorporates 3D spatial safety protection algorithms and can be optionally equipped with AI human separation algorithms to assist customers in quickly setting up protection zones to meet monitoring needs such as human intrusion and foreign object invasion. The aim of this solution is to provide comprehensive, high-precision spatial protection for human-machine interaction scenarios like injection machines and robotic arms, ensuring personnel safety while maintaining production efficiency.

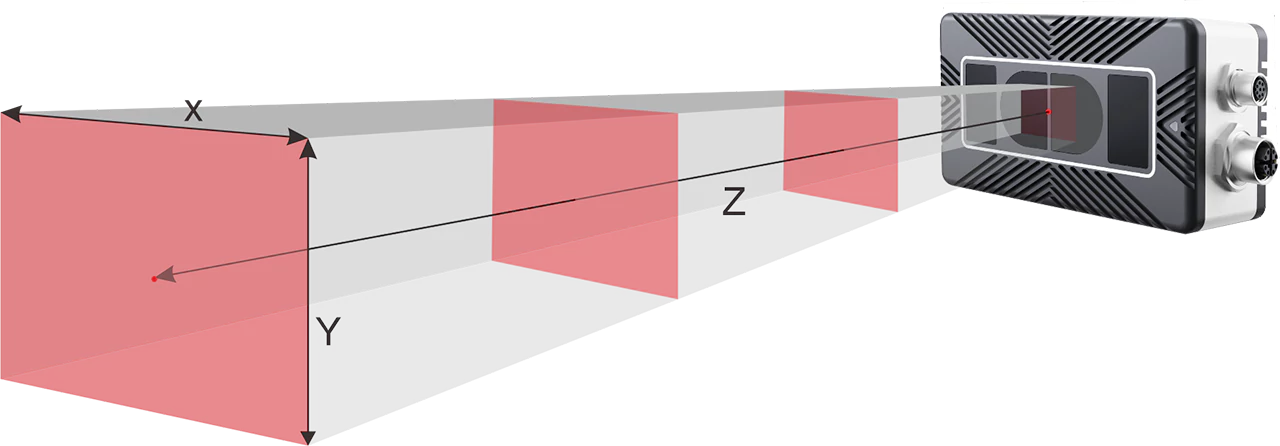

Camera Core Specifications and Field of View Diagram
0.2-5m
70°(±2)*50°(±2)/
103°(±2)*81°(±2)
Max 28fps
Class 1
940nm
DC12V-24V
15W
Support 100Klux
-30℃ ~ 65℃
IO (1 in 1 out) / CAN
IP67
Performance
| Standard FoV (70°*50°) | Wide FoV (103°*81°) | |||
| Installation Height | X(m) | Y(m) | X(m) | Y(m) |
| 0.5 | 0.7 | 0.47 | 1.26 | 0.85 |
| 1 | 1.4 | 0.93 | 2.51 | 1.71 |
| 2 | 2.8 | 1.87 | 5.03 | 3.42 |
| 3 | 4.2 | 2.8 | 7.54 | 5.12 |
| 4 | 5.6 | 3.73 | 10.06 | 6.83 |
| 5 | 7 | 4.66 | 12.57 | 8.54 |

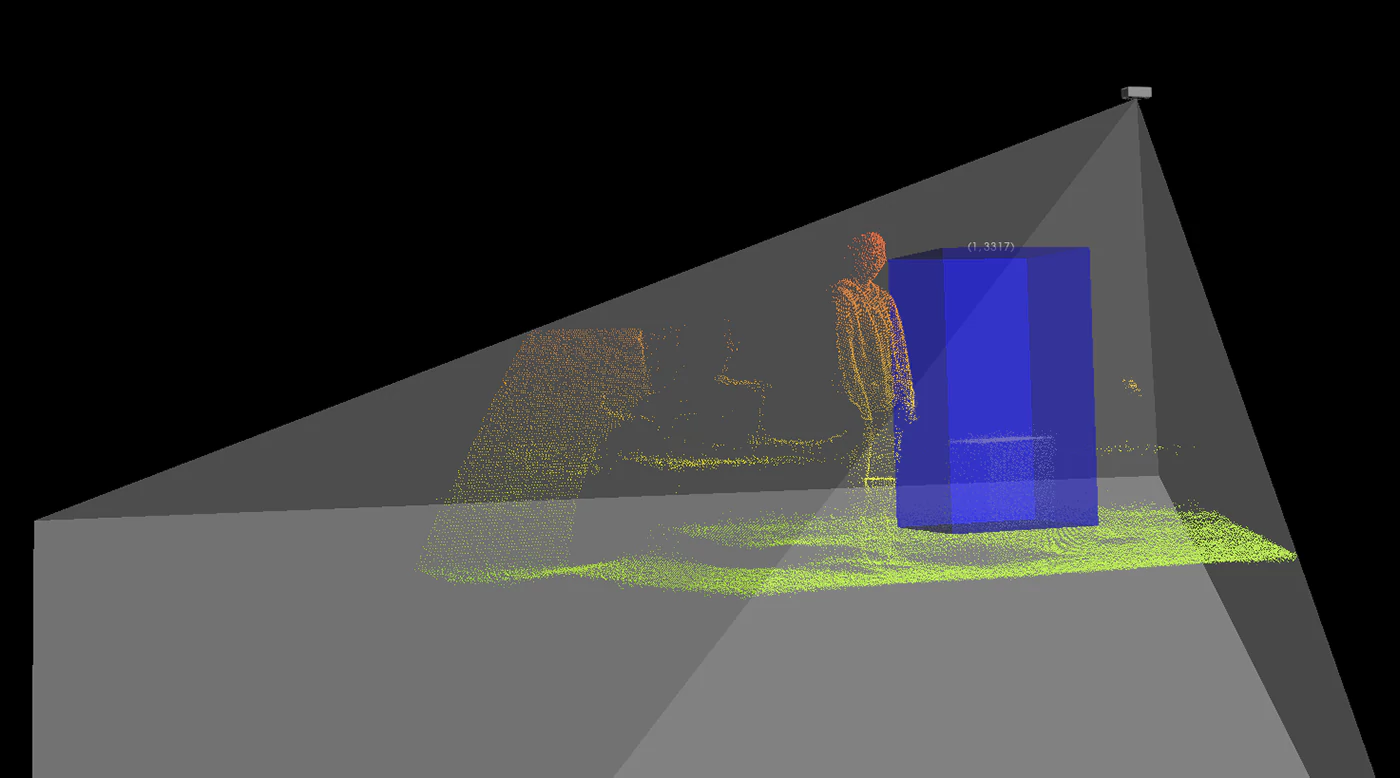

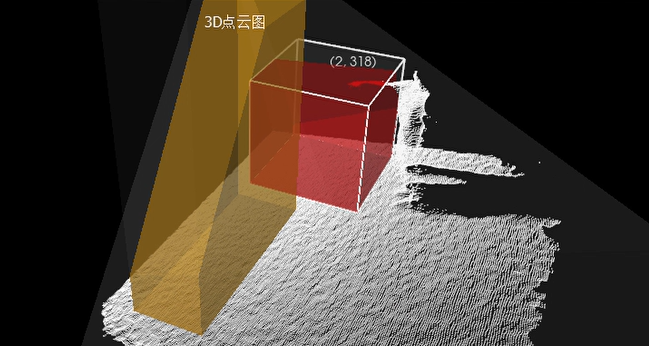

Point Cloud Examples
Advantages
The product's small size facilitates installation and deployment, saving space and allowing for easy calibration.
Capable of establishing a three-dimensional protective zone, with customizable detection distances and heights, while providing IR, depth maps, and point cloud data.
Accurately distinguish between humans and objects within the protected area, identify spatial distance information, effectively reducing false alarms, and preventing unnecessary production interruptions.
Utilize a 940nm active laser and depth camera imaging solution, unaffected by environmental lighting (up to 100Klux), ensuring stable operation even in dark factory settings.
Allow for the flexible division of protective zones of varying sizes, enabling users to implement appropriate safety measures based on different risk levels.

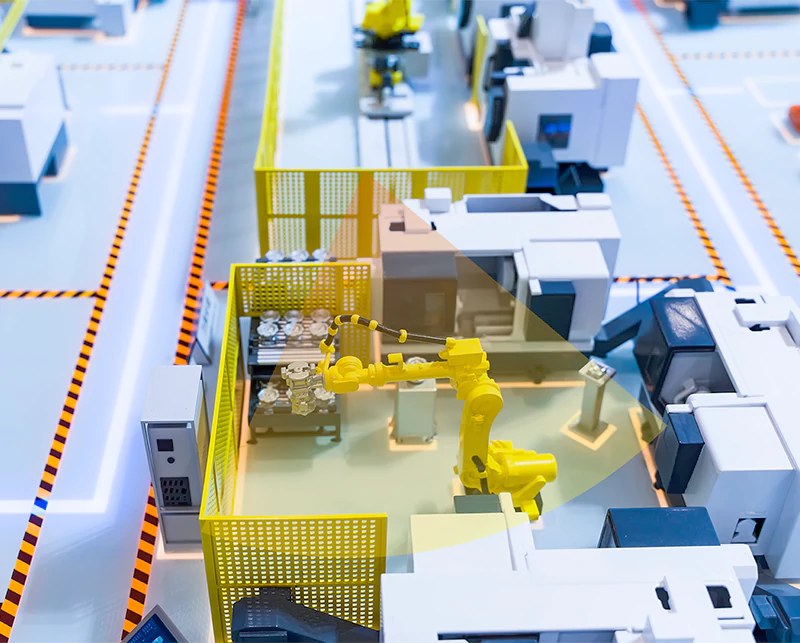

Applications

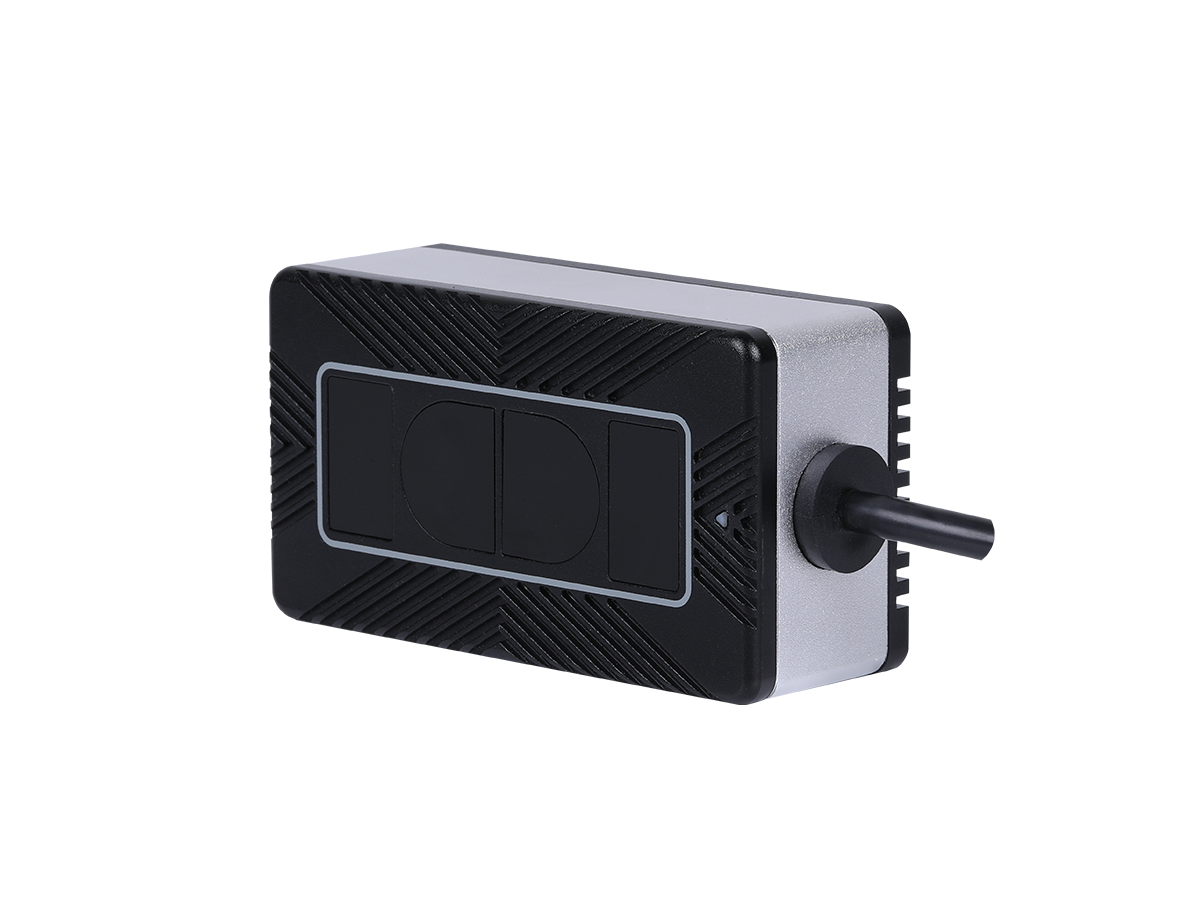

Products Recommendation
