LuminWave D Series 3D Industrial Camera
Comprehensive Products to Meet Diverse Scenario Requirements

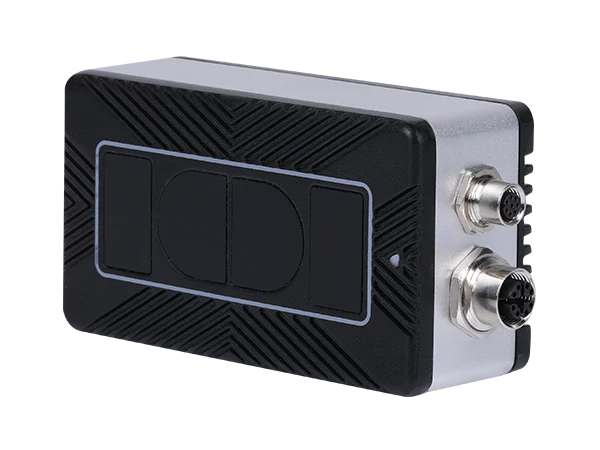

DM Series 3D Camera
The DM camera is an industrial-grade RGBD smart camera with a high-performance iToF sensor (SONY DepthSense™) and RK3588 processor (6TOPS computing power), supporting high dynamic range and high frame rates. It provides development tutorials and operator interfaces for efficient 3D vision AI deployment in logistics, collision avoidance, pallet recognition, safety monitoring, construction, agriculture, smart wheelchairs, and security.
0.2m~10m
±3mm+0.25%*depth
70°(±2)*50°(±2) / 103°(±2)*81°(±2)
71°(±2) *58°(±2)
640*480 dpi
1600*1200 dpi

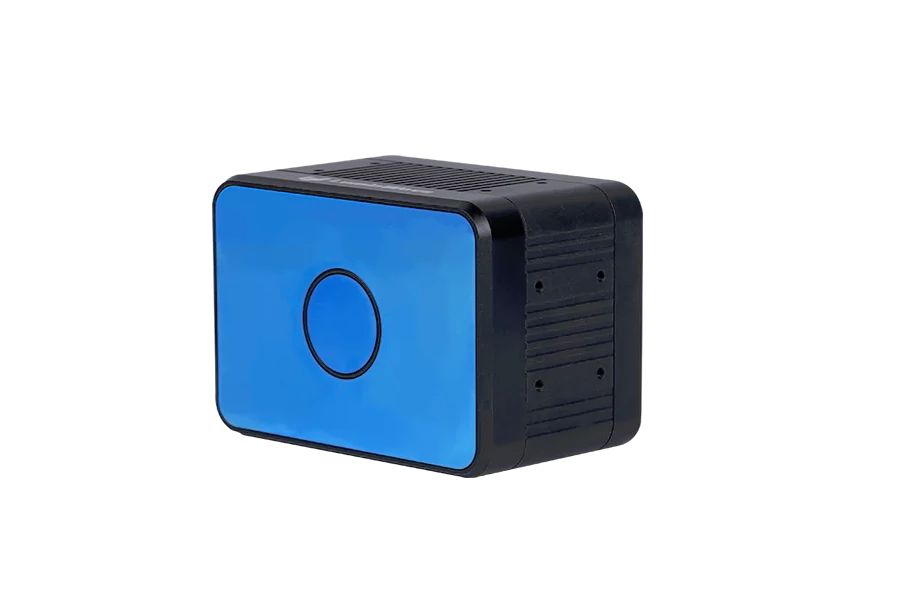

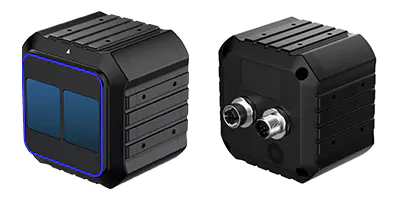

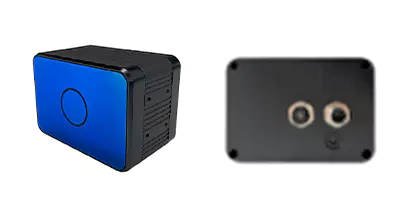

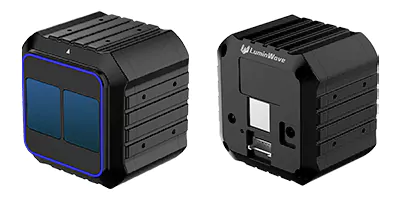

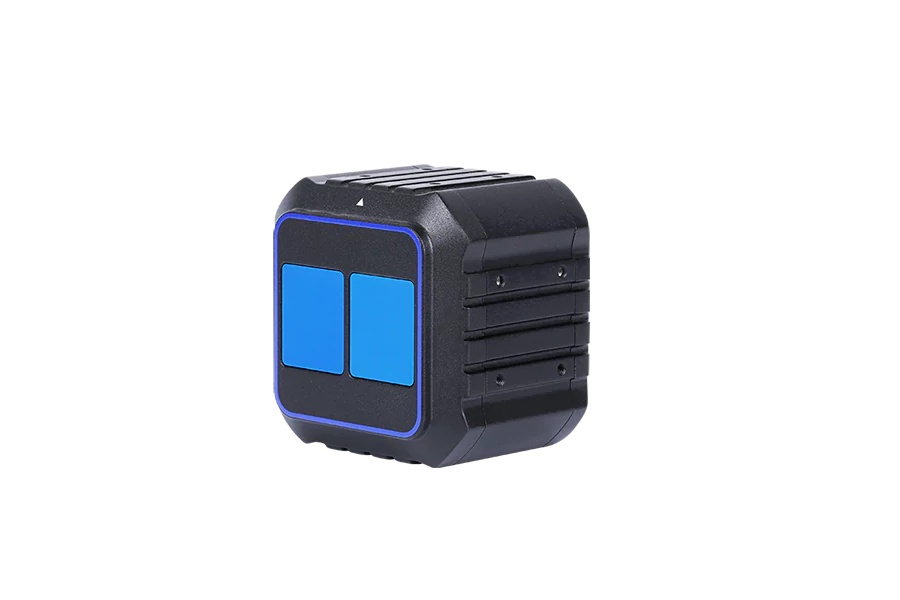

D3 Series 3D Camera
Embedded unique point cloud filtering and image processing algorithms in product, The product can provide IR, point cloud, and depth information in real time. It also has high reliable performance.
0.4m~5m
＜1% (@2m ≤5mm)
70° * 50° / 103° * 81°
640*480 dpi
IP42 / IP67

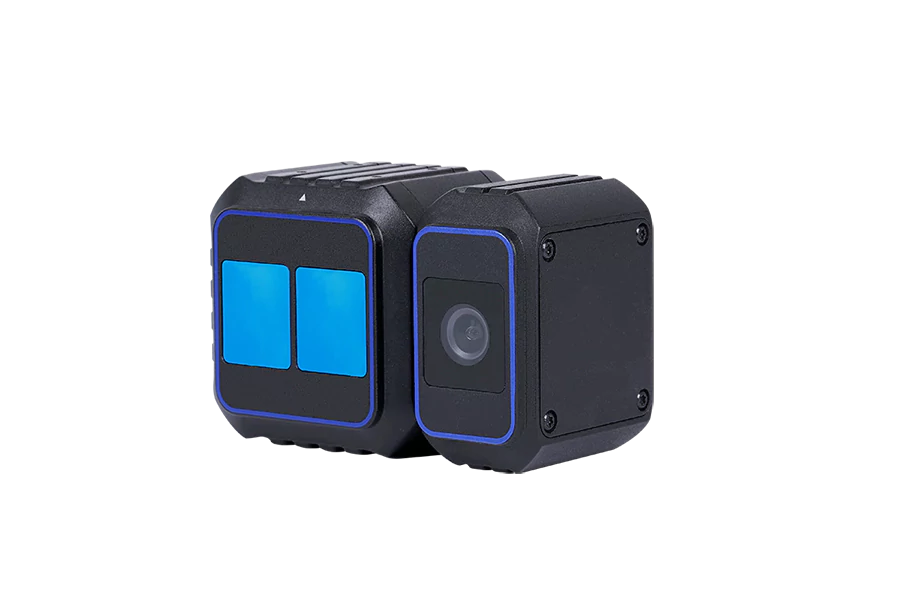

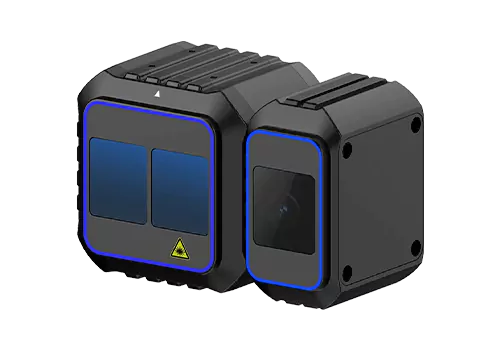

D3C Series 3D Camera
The product has millimeter accuracy, supports point cloud and RGB alignment, can reach to microsecond synchronous output of RGB images and ToF images, supports global-shutter image sensor technology. It can reach to high-precision edge segmentation, and captures the object’s three-dimensional data accurately, which can meet the requirements for applications in complex environments.
0.4m~5m
＜1% (@2m ≤5mm)
70°*50°
70°*50°
IP42 / IP67

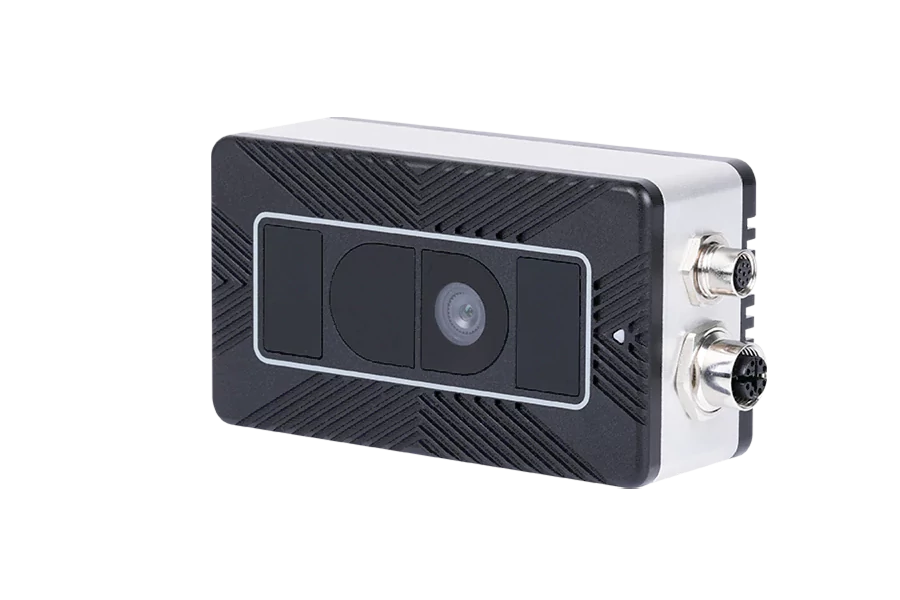

D3C Series 3D Camera
The product has millimeter accuracy, supports point cloud and RGB alignment, can reach to microsecond synchronous output of RGB images and ToF images, supports global-shutter image sensor technology. It can reach to high-precision edge segmentation, and captures the object’s three-dimensional data accurately, which can meet the requirements for applications in complex environments.
0.4m~12m
＜1%
103°*81°
640*480 pixel
IP67

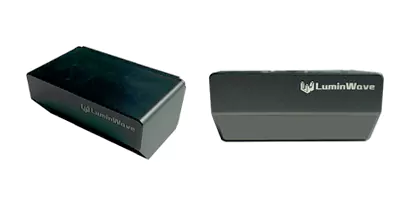

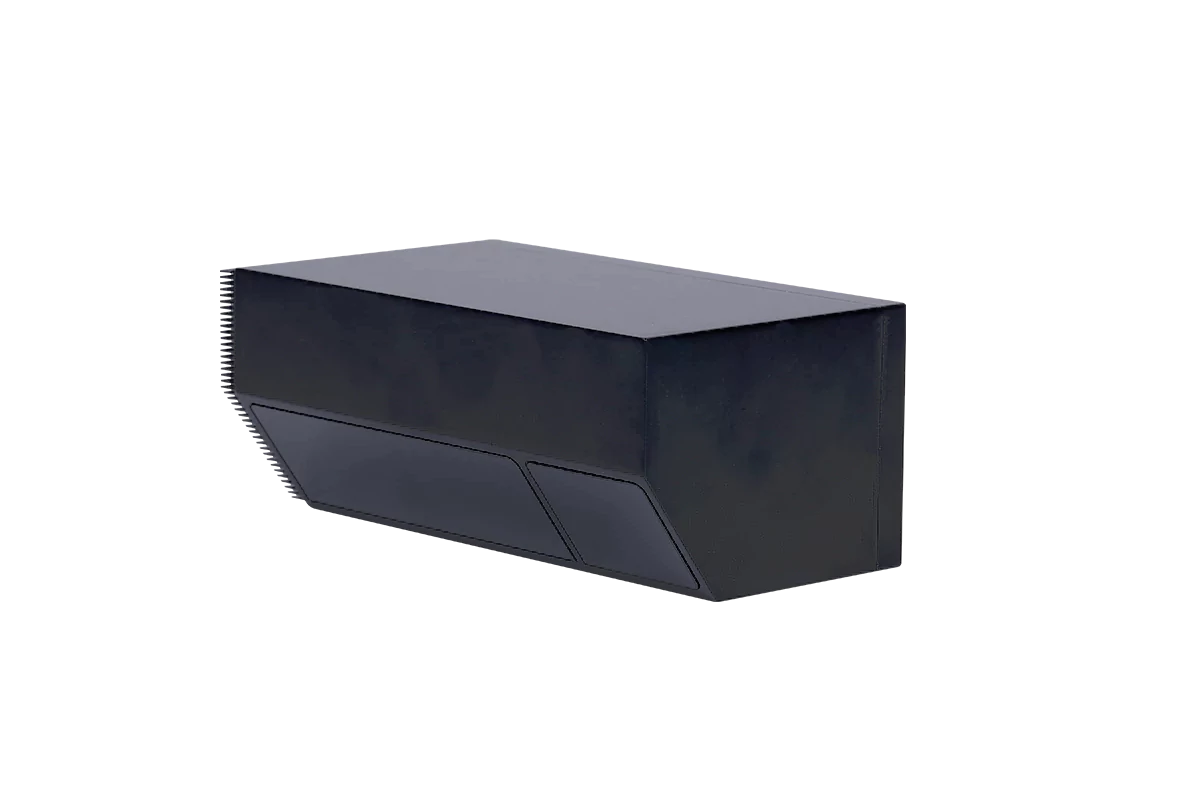

D1 Series 3D Camera
The Product can realize a wide field of view, long working distance based on its unique solid-state optical scanning technology. It supports ROI dynamic adjustment, dust filtering, motion recognition and one click acquisition of cargo volume. The product integrates AI volume measurement algorithm, with short time synchronization, can be flexibly applied to all types of trucks, used in cargo volume detection in and out of the warehouse and real-time monitoring of the cargo status in transit, and it has gained all kinds of reliability testing and quality certification.
0.3m~17m @10%NIST
Measurement Accuracy:
107°*77°
0.33° x 0.66°
IP54

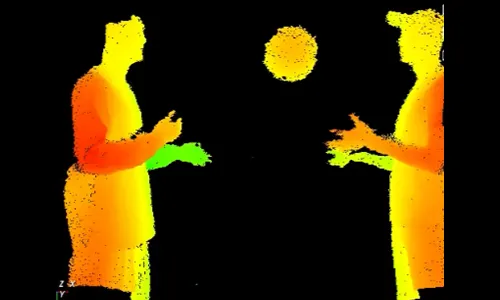

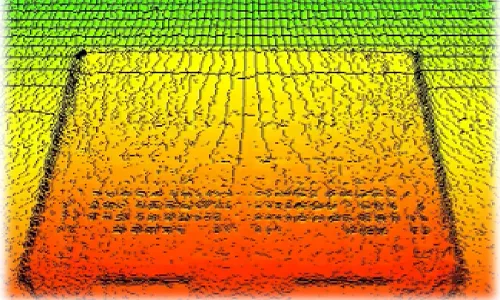

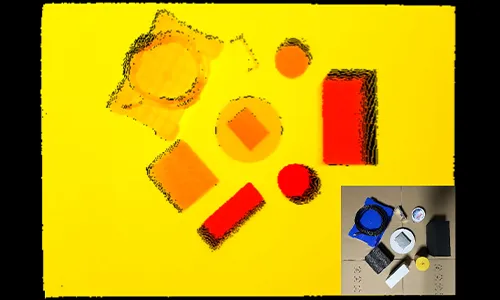

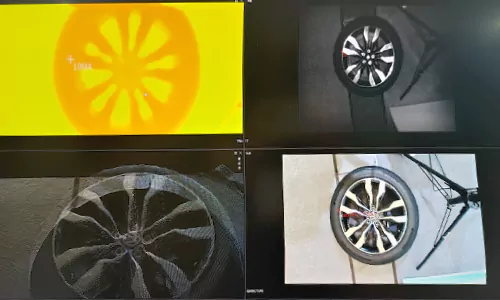

Point Cloud Examples
Applications
Cases

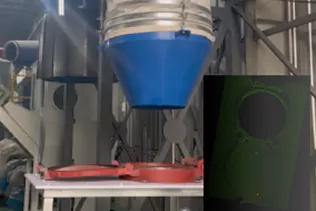

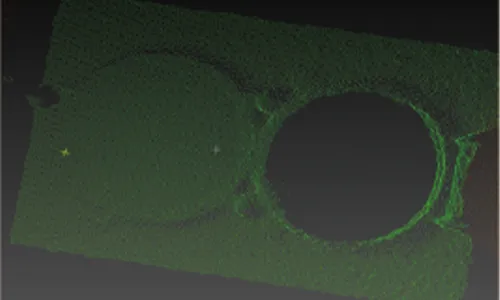

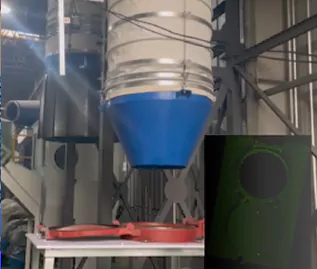

Filling-port Position
The project employs 3D cameras to capture point cloud data. Combined with target recognition algorithms, it outputs the coordinates of the lower container opening to devices such as PLCs, thereby achieving automatic positioning of the filling-port.

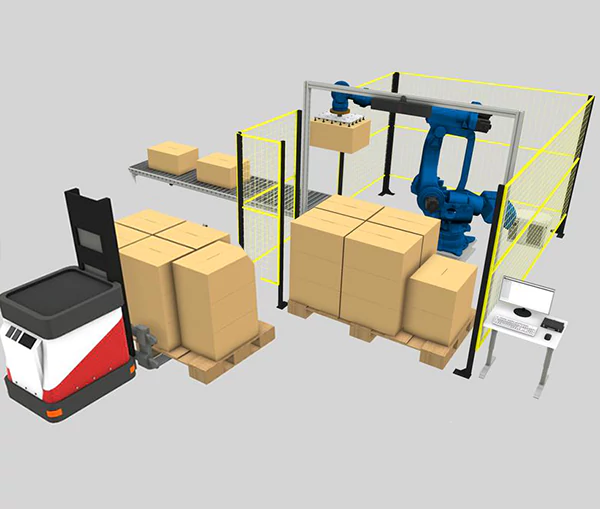

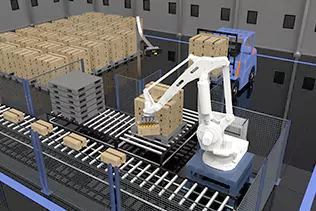

Depalletizing
The project leverages 3D ToF cameras to capture the depth information and profiles of goods. By integrating this data with automated equipment such as robotic arms, it achieves automated picking, handling, and stacking of goods. This enhances the standardization of operations and ensures consistent and uniform stacking.

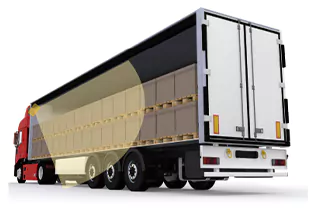

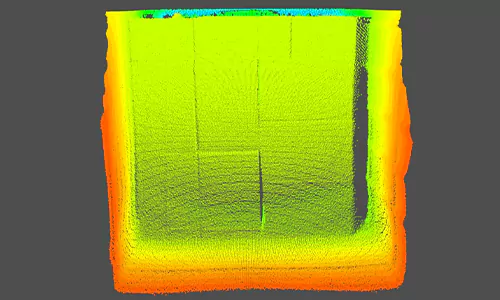

Measurement of Wagon Space
This project utilizes automotive-grade industrial cameras equipped with high-performance ToF (Time-of-Flight) sensors and algorithms. It minimizes multipath interference to the greatest extent and incorporates a dust filtering algorithm to enhance the accuracy of volume measurements.

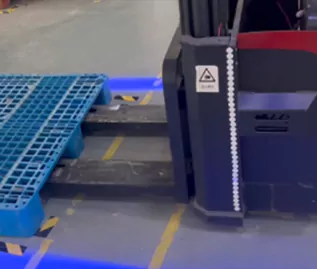

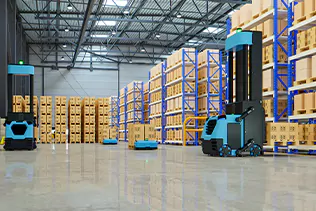

Pallet Identification
The project utilizes the D3 ToF camera, which is capable of identifying distant pallets. It achieves rapid positioning through single-shot imaging and outputs high-precision pose coordinate information at the millimeter level. This assists the AGV in adjusting its posture, enabling accurate and safe handling of goods, and thus efficiently completing loading, unloading, and handling operations.

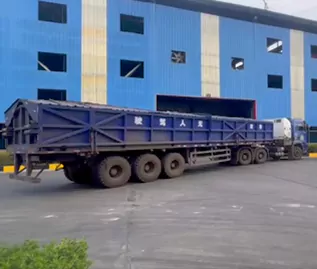

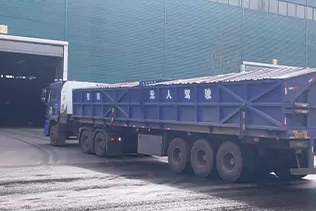

Heavy Truck Angle Measurement
The project enhances vehicle safety by installing a 3D camera to capture the angular data between the tractor and the trailer. It outputs multidimensional data, including point clouds and infrared (IR) images. The planar measurement accuracy can be maintained at the millimeter level, thereby ensuring safe driving for novice drivers or in autonomous driving scenarios.
People Counting
The project provides real-time statistics on the number of people entering, exiting, and passing through a designated area. It offers multidimensional imagery, including depth maps and point cloud images. Equipped with capabilities for real-time data capture and behavioral analysis, it delivers precise and comprehensive people-counting services.

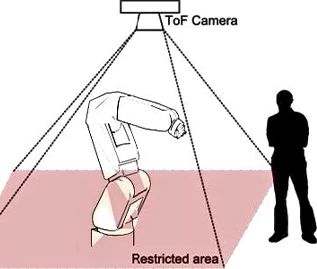

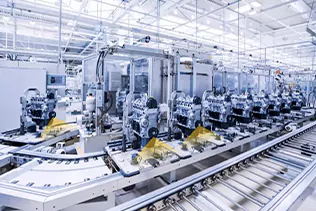

Safety Area Protection
The project employs the installation of 3D ToF cameras to provide real-time environmental perception at the customer's site. It detects environmental boundaries and monitors the movement trajectories of personnel, thereby preventing incidents such as unauthorized entry into restricted areas and accidental contact with equipment. This supports the establishment of a robust monitoring and prevention mechanism.

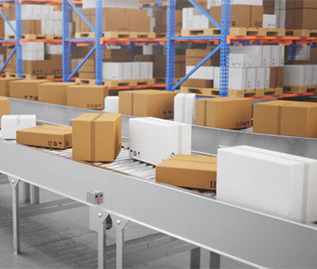

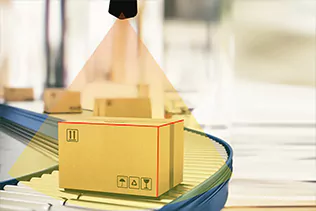

3D Measurement
The project successfully addresses several key challenges: the high cost and expensive maintenance associated with line laser solutions, the inaccurate edge precision of speckle structured light under strong illumination, and the time-consuming and imprecise nature of curtain measurement for volumetric calculations. By offering a cost-effective alternative, it provides customers with accurate information on the external dimensions of goods.
